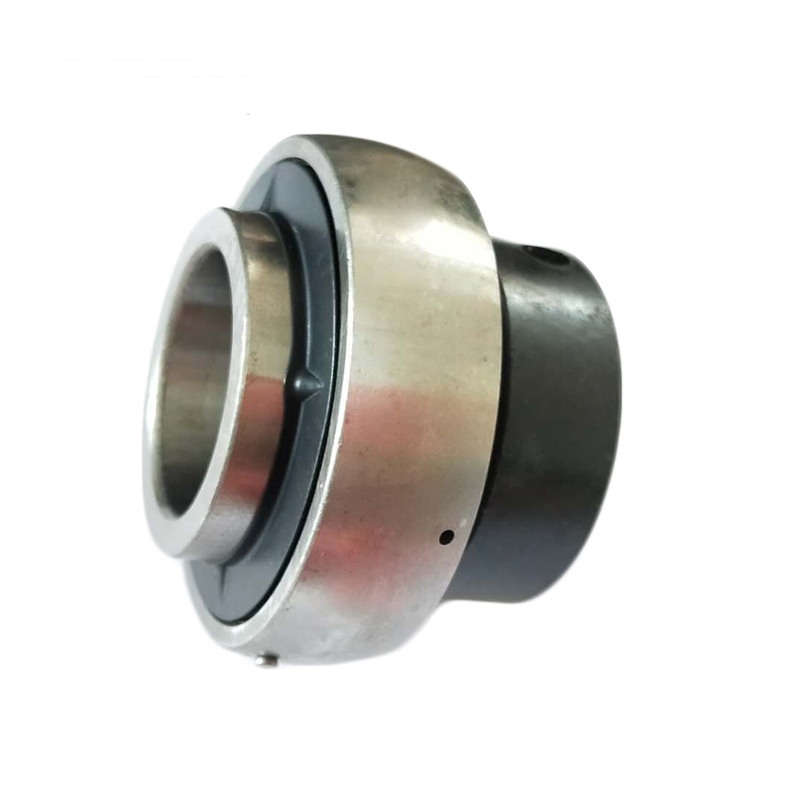

Insert Ball Bearing CSA205, CSA205-14, CSA205-15,

产品价格：￥5.50（人民币）

供应数量：10000

发货地：山东-聊城市

最小起订量：1套

QQ洽谈点击询价进入商铺

临清市普菲轴承有限公司

家家通

会员级别：家家通

认证类型：企业认证

企业证件：通过认证

认证信息：临清市普菲轴承有限公司

商铺名称：临清市普菲轴承有限公司

联系人：管振清（先生）

联系手机：

固定电话：

企业邮箱：sales@pftbearing.com

联系地址：聊城市临清市烟店工业园

邮编：252600

联系我时，请说是在泵阀网上看到的，谢谢！

商品详情

Model Number U200 series, SB200 series, CSB200 series, SER200 Series, HC200 Series,

SA200 Series,CSA200 Series, UK200 Series.

Type PILLOW BLOCK BALL BEARING

Number of Row Single Row.

Material supreme chrome steel AISI 52100 or stainless steel AISI 440C.

Hardness HRC 58-62.

Radial Clearance C0, C2, C3, C4, C5.

Vibration ZV1, ZV2, ZV3.

Precision Rating ABEC-1, ABEC-3, ABEC-5.

Sealing type open, ZZ, 2RS.

Grease As per your requirement, such as Chevron SRI-2 ,Multemp PS2, Shell Alvania R2, Changcheng 2 and so on.

Certifications ISO 9001:2008.

Brand Name PFTB

Package plastic tube package, single box package or as per buyer's requirement.

Place of Origin China (Mainland).

Features (1) high precision;

(2) high speed;

(3) low noise;

(4) long life span.

Application Agricultural machinery.

Payment Term TT or L/C or Western Union.

Port Shanghai, Tianjin or Qingdao.

Samples Free samples are available.

Bearing No.	Shaft Dia		Boundary dimensions(mm)										Basic load ratings		Mass(Kg)
Bearing No.	in.	mm	D	L	Bi	Be	n	m	Di	K	G	ds	C	Co
CSA201		12	40	28.6	19	12	6	22.6	29	13.5	4.8	M6x1.0	2160	990	0.12
CSA201-8	1/2		40	28.6	19	12	6	22.6	29	13.5	4.8	1/4-28UNF	2160	990	0.12
CSA202		15	40	28.6	19	12	6	22.6	29	13.5	4.8	M6x1.0	2160	990	0.11
CSA202-10	5/8		40	28.6	19	12	6	22.6	29	13.5	4.8	1/4-28UNF	2160	990	0.11
CSA203		17	40	28.6	19	12	6	22.6	29	13.5	4.8	M6x1.0	2160	990	0.1
CSA204		20	47	31	21.5	14	7	24	33	13.5	4.8	M6x1.0	12890	6490	0.17
CSA204-12	3/4		47	31	21.5	14	7	24	33	13.5	4.8	1/4-28UNF	12890	6490	0.16
CSA205		25	52	31	21.5	15	7.5	23.5	38	13.5	4.8	M6x1.0	14000	7560	0.2
CSA205-14	7/8		52	31	21.5	15	7.5	23.5	38	13.5	4.8	1/4-28UNF	14000	7560	0.22
CSA205-15	15/16		52	31	21.5	15	7.5	23.5	38	13.5	4.8	1/4-28UNF	14000	7560	0.21
CSA205-16	1		52	31	21.5	15	7.5	23.5	38	13.5	4.8	1/4-28UNF	14000	7560	0.19
CSA206		30	62	35.7	23.8	16	8	27.7	44.5	15.9	6	M6x1.0	19510	11160	0.31
CSA206-17	1-1/16		62	35.7	23.8	16	8	27.7	44.5	15.9	6	1/4-28UNF	19510	11160	0.33
CSA206-18	1-1/8		62	35.7	23.8	16	8	27.7	44.5	15.9	6	1/4-28UNF	19510	11160	0.33
CSA206-19	1-3/16		62	35.7	23.8	16	8	27.7	44.5	15.9	6	1/4-28UNF	19510	11160	0.3
CSA206-20	1-1/4		62	35.7	23.8	16	8	27.7	44.5	15.9	6	1/4-28UNF	19510	11160	0.28
CSA207		35	72	38.9	25.4	17	8.5	30.4	55.5	17.5	6.8	M8x1.0	25650	15340	0.49
CSA207-20	1-1/4		72	38.9	25.4	17	8.5	30.4	55.5	17.5	6.8	5/16-24UNF	25650	15340	0.52
CSA207-21	1-5/16		72	38.9	25.4	17	8.5	30.4	55.5	17.5	6.8	5/16-24UNF	25650	15340	0.5
CSA207-22	1-3/8		72	38.9	25.4	17	8.5	30.4	55.5	17.5	6.8	5/16-24UNF	25650	15340	0.47
CSA207-23	1-7/16		72	38.9	25.4	17	8.5	30.4	55.5	17.5	6.8	5/16-24UNF	25650	15340	0.45
CSA208		40	80	43.7	30.2	18	9	34.7	60	18.3	6.8	M8x1.0	28890	17110	0.66
CSA208-24	1-1/2		80	43.7	30.2	18	9	34.7	60	18.3	6.8	5/16-24UNF	28890	17110	0.64
CSA208-25	1-9/16		80	43.7	30.2	18	9	34.7	60	18.3	6.8	5/16-24UNF	28890	17110	0.61
CSA209		45	85	43.7	30.2	19	9.5	34.2	63.5	18.3	6.8	M8x1.0	32670	18220	0.65
CSA209-26	1-5/8		85	43.7	30.2	19	9.5	34.2	63.5	18.3	6.8	5/16-24UNF	32670	18220	0.76
CSA209-27	1-11/16		85	43.7	30.2	19	9.5	34.2	63.5	18.3	6.8	5/16-24UNF	32670	18220	0.73
CSA209-28	1-3/4		85	43.7	30.2	19	9.5	34.2	63.5	18.3	6.8	5/16-24UNF	32670	18220	0.7
CSA210		50	90	43.7	30.2	20	10	33.7	69.8	18.3	6.8	M10x1.25	35120	20850	0.7
CSA210-30	1-7/8		90	43.7	30.2	20	10	33.7	69.8	18.3	6.8	3/8-24UNF	35120	20850	0.83
CSA210-31	1-15/16		90	43.7	30.2	20	10	33.7	69.8	18.3	6.8	3/8-24UNF	35120	20850	0.79
CSA210-32	2		90	43.7	30.2	20	10	33.7	69.8	18.3	6.8	3/8-24UNF	35120	20850	0.74
CSA211		55	100	48.4	32.5	24	12	36.4	76.2	20.6	8	M10x1.25	43340	26000	0.77
CSA211-32	2		100	48.4	32.5	24	12	36.4	76.2	20.6	8	3/8-24UNF	43340	26000	0.96
CSA211-34	2-1/8		100	48.4	32.5	24	12	36.4	76.2	20.6	8	3/8-24UNF	43340	26000	0.87
CSA211-35	2-3/16		100	48.4	32.5	24	12	36.4	76.2	20.6	8	3/8-24UNF	43340	26000	0.81
